Rail Fastening Manufacturer in China—AGICO GROUP(2)

Rail Fastening Manufacturer----We have Different Rail Fastening for Sale

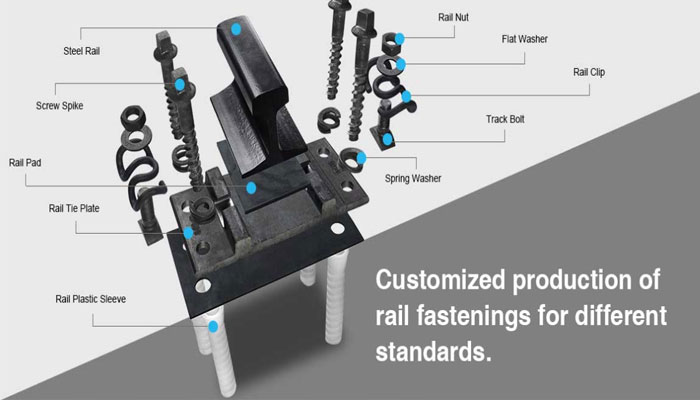

A rail fastening  is a means of fixing rails to railroad ties or sleepers. The terms rail anchors, tie plates, chairs and track fasteners are used to refer to parts or all of a rail fastening system. Various types of fastening have been used over the years. GROUP AGICO is a professional rail fastening manufacturer in China, We have different rail fastening for sale : dog spike, screw spike, tie plate, rail pad, rail clip.

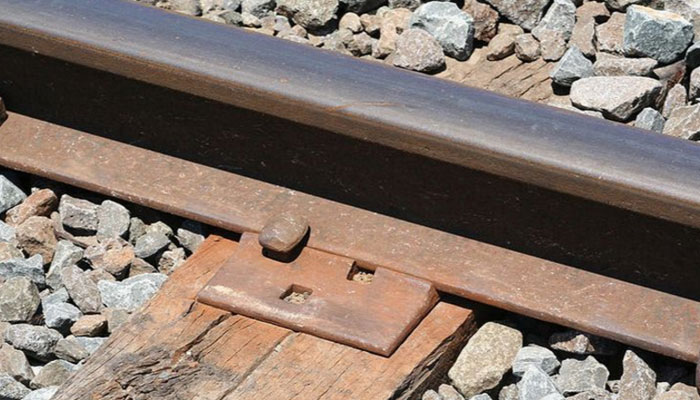

Tie Plate

A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail and the crossties. The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden ties by means of spikes or bolts through holes in the plate.
The part of the plate under the rail base is tapered, setting the cant of the rail, an inward rotation from the vertical. The usual slope is one in forty ( 1.4 degrees ). The top surface of the plate has one or two shoulders that fit against the edges of the base of the rail. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside (field side) of the rails. Most plates are slightly wider on the field side, without which the plates tend to cut more into the outsides of the tie, reducing cant angle.
Many railways use large wood screws, also called lag screws, to fasten the tie plates (or baseplates) to the railroad ties.Tie plates came into use around the year 1900, before which time flanged T rail was spiked directly to the ties.


We use the most popular casting technique both China and abroad for producing. Weare a professional rail fastening manufacturer,Furthermore , in recent years, AGICO is the first company in China to try rolling processing onto baseplate production. AGICO manufactures all types of baseplates suitable for various rail sections, for use on wooden, steel or concrete sleepers and ballast-less tracks used with elastic fastenings on wooden sleepers and other fastening system. Our tie plate can be made to suit various rail section, i.e. UIC 60, UIC 54, RN 45, 90 A, etc. And our products following standards of AREMA, UIC, BS and others, with either single shoulder plates or double shoulder plates according to customer requirements.Up to now, We have different rail fastening for sale,and we have successfully manufactured dies for 11", 14" and 14-3/4" rail tie plates, and both for 5-1/2" and 6" rail bases. Some more varieties are under negotiation with the clients as well. Based on this, we received orders for rolling tie plates with total weight over 3,000tons. Of course, tie plate production by forging are also available at AGICO company.

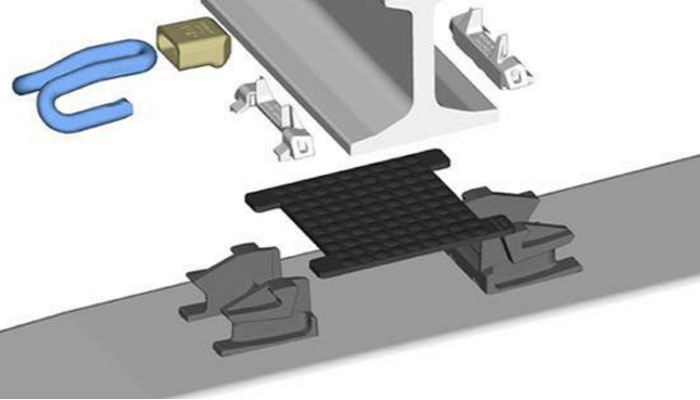

Rail Pad

Rail pad usually install between steel rail and railway sleeper. Rail pad is mainly used to cushion vibration at high speed and impact. Rail pads not only protect roadbed and railway sleeper, but insulate electric from signal system. With prolonged air exposure, rail pad require good aging resistance, cold and heat resistance. The common rail pads include rubber rail pad, plastic rail pad and etc. among all kinds of rail pad, rubber rail pad works best .



AGICO equips 130sets machines' rail pad production line, for processing, injection, refining rubber, sulfuration , moulding and inspection etc. We have our own rail pad development engineers, designing, producing and inspecting, our annual production capacity reaching up to 2000, 000 pieces. What’s more, rail pads for high-peed rail are our featured products, including both the elastic rubber plates and height adjustment pads.

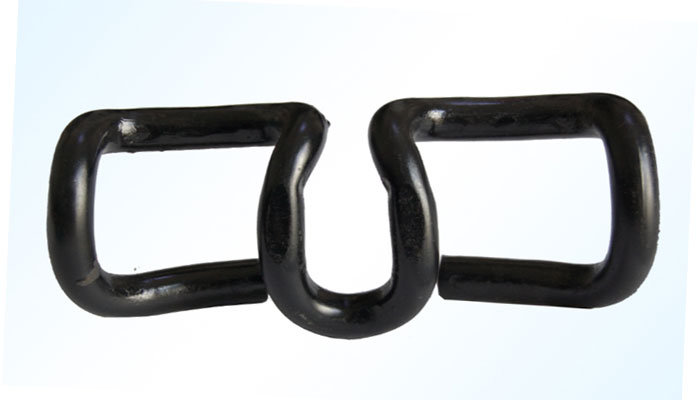

Rail Clip

Rail elastic clip ,or called rail clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Through the track bending, the pressure acts on the track. To ensure the reliability and integrity of connection between steel rails and track. Rail clips provide an important guarantee for the safety of the vehicle,In general, rail clips are made of forged spring steel produced by hot forging process. Because of the most uniform microstructure, the forged rail clips are considered to be better than other metal forming process. and in addition, the Rail elastic clips have to withstand various forces such as bending, torsion, impact, fatigue and corrosion, so AGICO is very strict on producing and performance processing of the elastic rail clips.

AGICO is a Trustworthy Rail Fastening Manufacturer, We have Different Rail Fastening for Sale

As a professional manufacturer and supplier of railroad fasteners, we supply spring clip with the top-class quality and the most competitive price.We use optimum quality raw materials to produce rail clip, to make sure high tensile strength and corrosion resistance. we have the most modern production lines for rail clips, from material cutting, medium frequency heating, 3-time punch forming, quenching, tempering and inspection to packing. We have a daily production capacity of 100,000 pieces rail clips And our products can be customized according to clients' requirement.
More importantly, AGICO has a highly efficient, professional team to serve you, that will save your time and technology costs. AGICO team is highly specialized and has high sense of responsibility, it will reduce risks and make you satisfied.
